AE101 SEG + 4AG 20V Blacktop + E-manage

Another AE101 SEG with Blacktop 20V and E-manage Blue (Actually it is EM-CON by M7).His engine is equipped with the usual bolt on goodies,trumpets and a Tomei Pon-Cam 256-264deg.

Good result there.Impressed with the cams,really bump the torque significantly to 160Nm (117lb/ft), almost 10Nm increase over stock engine with stock cam.I reckon with a standalone ecu it will be better overall and trim that torque dip above 6000rpm.

Well,there is always a room for improvement.

AE86 + 4AG 20v + Adaptronic e420d Re-tune

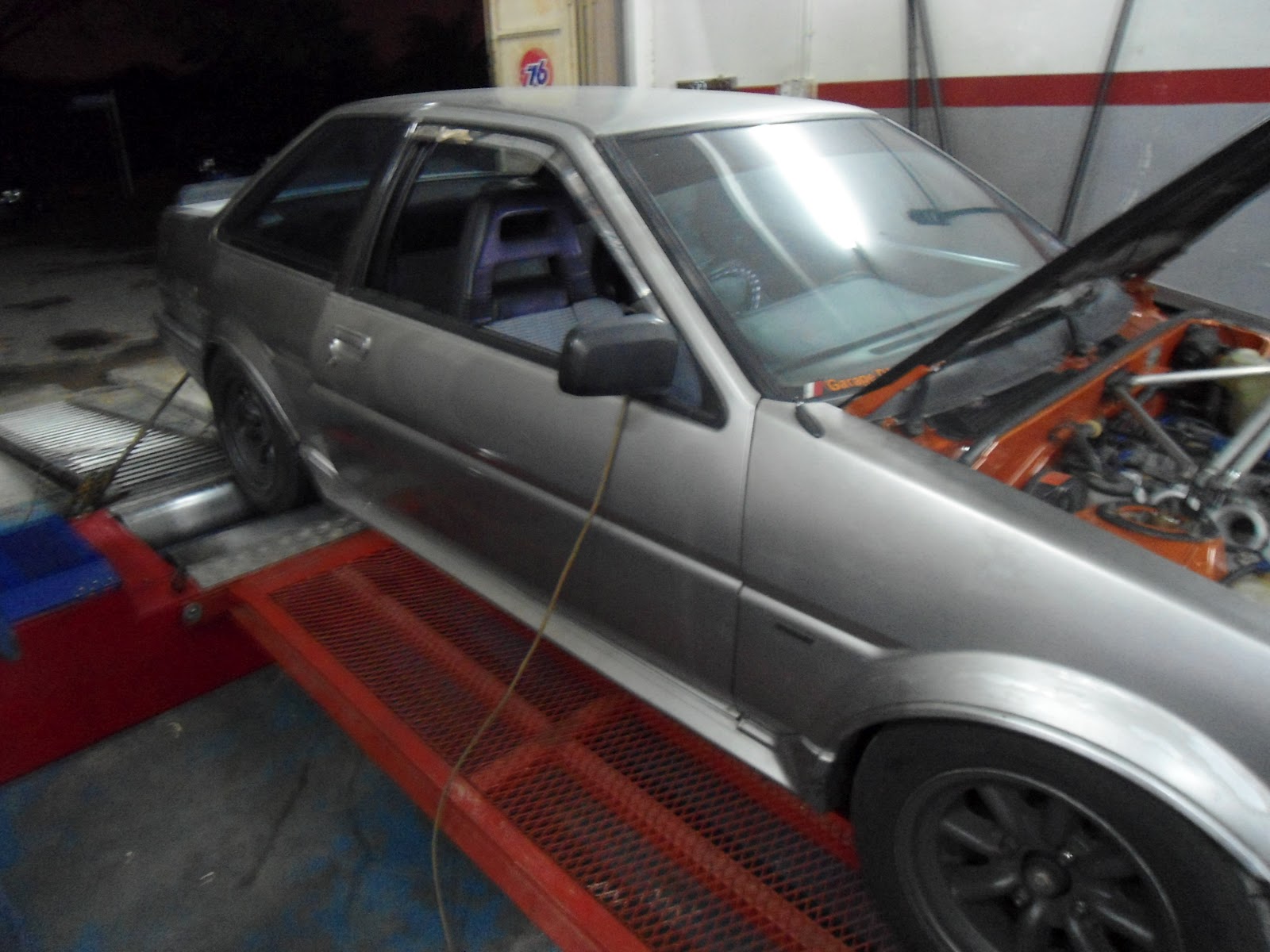

 This car have been featured before,the owner did a few extra mod and asking for a re-tune.So to the dyno we went.






I can't believe it! 151.2 WHP this time,153 Nm of torque. The engine is still untouched! The extra mod is a full set of titanium cat back exhaust system and an adjustable cam pulley on exhaust cam. This must be a one healthy engine.

Come back home smiling.

Toyota LE + 4AG 20V + Adaptronic e420c

This car is old but with a new engine,it can perform well chasing the new cars,but the body and chassis need serious strengthening.It is fitted with 4AGE 20v Silvertop,with Adaptronic e420c for engine controls and Plug and Play 4AG 20v harness (Previously on stock ecu).The engine spec is pretty much stock,with stock cams and piston,only with 0.8mm metal head gasket and custom trumpets.It is also tuned with 4-2-1 extractor and a 2.3 inch straight exhaust pipe which exit just below the driver seat floorpan.Fuel is local RON95.And i should mention that the engine is not in a very good condition,it was smoking and consumes engine oil very badly but owner insist to tune it before tearing it down for rebuilt.

The end result (blue graph).

 This is a huge gain over stock untuned map(red graph),i am really pleased with this considering the engine is relatively stock.Almost 144 WHP and 114 lb/ft or torque,that is about 155Nm.It is quite responsive too.Owner is pleased.We are happy for him too.

AE101 4AGE 20v + Adaptronic e420c install and tuning

A customer come in a AE101 corolla swapped with 4AGE 20v. He wants a plug and play installation for his Adaptronic e420c,so we made up a plug and play harness for his 4AG 20v.

Installation was quick and straight to the dyno.

 End result is 131.8 WHP for a stock blacktop 4AGE 20v.

This is not the best reading i have with the 4AG and Adaptronic,the engine is knocking so bad and i can't raise the ignition timing too much.We suspect there is something wrong with the engine,so the customer will send it for checking.A healthy stock 20V should make aroudn 135 to 140whp and around 110lb/ft of torque.

AE92 + 3SGTE E-manage Tuning

Hi,

Before Hari Raya,a friend come to tune his E-manage blue in his 3S GTE equipped AE92 Corolla.

The end result is 224.5whp but with less boost than the 1st run.

The blue graph is base run with 0.8-0.9 bar of boost,the red graph is the tuned but with only 0.6-0.7 bar of boost.The boost controller acting weirdly during tuning so we cant raise the boost. However we picked up good gain at high rpm even with less boost as the previous AFR is too rich at the high end.

The owner will get the boost controller sorted out and come back for more.

ADAPTRONIC ECU

Hi All!

R.N.R Autosport now supplies more range of Adaptronic ECUs,this now include the Plug In Select range.We can supply ecu as listed below;

Wire in series

1. Adaptronic e420d Basic Select ( Ecu + connectors only)
2. Adaptronic e420d Basic Select with 2 Meter unterminated wiring loom
2. Adaptronic 440 Universal Select
3. Adaptronic e1280s Super ECU

Plug in series - Nissan

1. Silvia S13 SR20DET Redtop
2. Silvia S13 SR20DET Blacktop
3. Silvia S14 SR20DET
4. Silvia S14a SR20DET
5. Silvia S15 SR20DET
6. Skyline R32 RB25/26 DETT
7. Skyline R33 RB25/26 DETT
8. Fairlady 300ZX VG30DETT

 Plug in series - Mazda

1. Mazda MX5 NA6/NA8
2. Mazda MX5 NBA/NBB/NBB SE (Piggyback install,stock ecu retain for basic function)
3. Mazda RX8 (Piggyback install,stock ecu retain for basic function)


The most popular model is the e420d ecu, here are the standard features of the ecu;

1. "3D" Fuel and Ignition maps (as on any sophisticated aftermarket ECU) (32x16)

2. Configurable ignition and injection outputs to suit different applications

3. Inputs for water temperature, air temperature, auxiliary temperature (eg turbo), manifold air pressure,   throttle position, knock sensor, EGO (exhaust gas oxygen)

4. Internal MAP sensor suitable for up to 40 psi of boost (3 Bar of boost)

5. Outputs for four injector groups - allows full sequential injection up to 4-cylinders, or semi-sequential injection up to 8- cylinders

6. Outputs for four igniter groups - allows full sequential spark up to four cylinders and wasted spark systems up to 8-cylinders, or any conventional distributor systems

7. Eight configurable auxiliary outputs - four of which are configurable as high current outputs, three of which are PWM capable.

8. Four configurable digital inputs

9. PC interface via USB cable

10. 3.5mm headphone jack for listening to knock

11. Datalogging via 'WARI' PC software

12. Narrow-band (factory EGO sensor) closed loop fuel control


13. Special function programmable outputs - allows control of anti-pollution purge valves, air conditioners etc

14. Open-loop and closed-loop idle bypass control - allows configuration of increased idle bypass amount based on low battery, electrical load, air conditioner, as well as correction based on RPM, optional ignition timing control for idle speed regulation

15. Programmable for many different crank/cam angle sensor waveforms

16. Dual closed-loop variable valve timing (VVT) channels

17. Launch control

18. Pit Lane Speed Limiter

19. Closed-loop boost control

20. Push to pass boost scramble.

21. Dual maps capable via external switch.

22. VE tuning with various tuning modes (MAP or TPS,or MAPxTPS for multi throttle engines)

All ECU will be provided with 1 year warranty of manufaturers defect.All the plug in series comes with base map to get your car running,all you need is to bring your car to the tuner.

Installation and tuning is also provided (Discount on ecu price will be given for first time customers who installs and tune with us).Please call R.N.R Autosport for more details at 012 359 8616 or write to rnrautosport@gmail.com.
