Toyota AE86 4AG 20v + Adaptronic e420d ecu

A customer would like to replace the old 4AG 16v engine in his AE86 with a newer 4AG 20v,but as the 20v is from a front wheel drive Levin/Trueno,when it being fitted to rear wheel drive format,the distributor will hit the firewall,there are 3 solutions to this,which is knocking the firewall for the distributor to clear,make a distributor relocation kit or use a Standalone engine management system to convert the ignition system form distributor to wasted spark or direct fire (individual coils).

A better alternative is the third option which is using a standalone engine management system.R.N.R Autosport have suggested the owner to go for direct fire coil on plug ignition system.In this case the coil used is from Nissan SR20 S15 Silvia.ECU of choice is the Adaptronic e420d.This little ecu is packed of features for its relatively cheap price.
Coil harness fabrication
Here is the finished custom made harness,all wires are soldered and shrinked wrap the entire loom.

From another angle

 Fitted on the engine,the wiring literally hidden.

Another view


Another angle from top

Put the car up on the Dyno Dynamics Chassis Dynamometer

The result of the conversion.The engine is totally stock standard except for extractor,coil on plug converision and the custom made trumpets.A good result considering its a RWD car which has a higher transmission losses,not to mention this is tuned on RON 95 petrol.The fuel consumption is greatly decreased,more than 14km/L on highways (as reported by the owner). Ecu running flawlessly everytime,no matter cold or hot start.

Congrats to the owner,a rare classics,AE86 is a gem.This project is will not end here,the owner has a few more plans for his baby.So watch out this blog guys.Thanks.


Engine Bay Pic of 2ZZGE AE92

Engine bay pic of the AE92 2ZZGE conversion.
During tidying up process,everything is stock except for the custom made extractor.Engine bay wiring is stock factory AE92,combined together with the 2ZZ-GE ecu wiring.

New Projects by R.N.R Autosport

New projects at  R.N.R Autosport

 5 new units of Adaptronic e420d for R.N.R Autosport customers,various projects including RB25 and 4AG 20v. A cost effective ecu that has proven itself as a competitor to the well known brands in aftermarket ecu world. I believe with its price and features,Adaptronic will gain popularity among motorsport enthusiasts,especially in Malaysia.

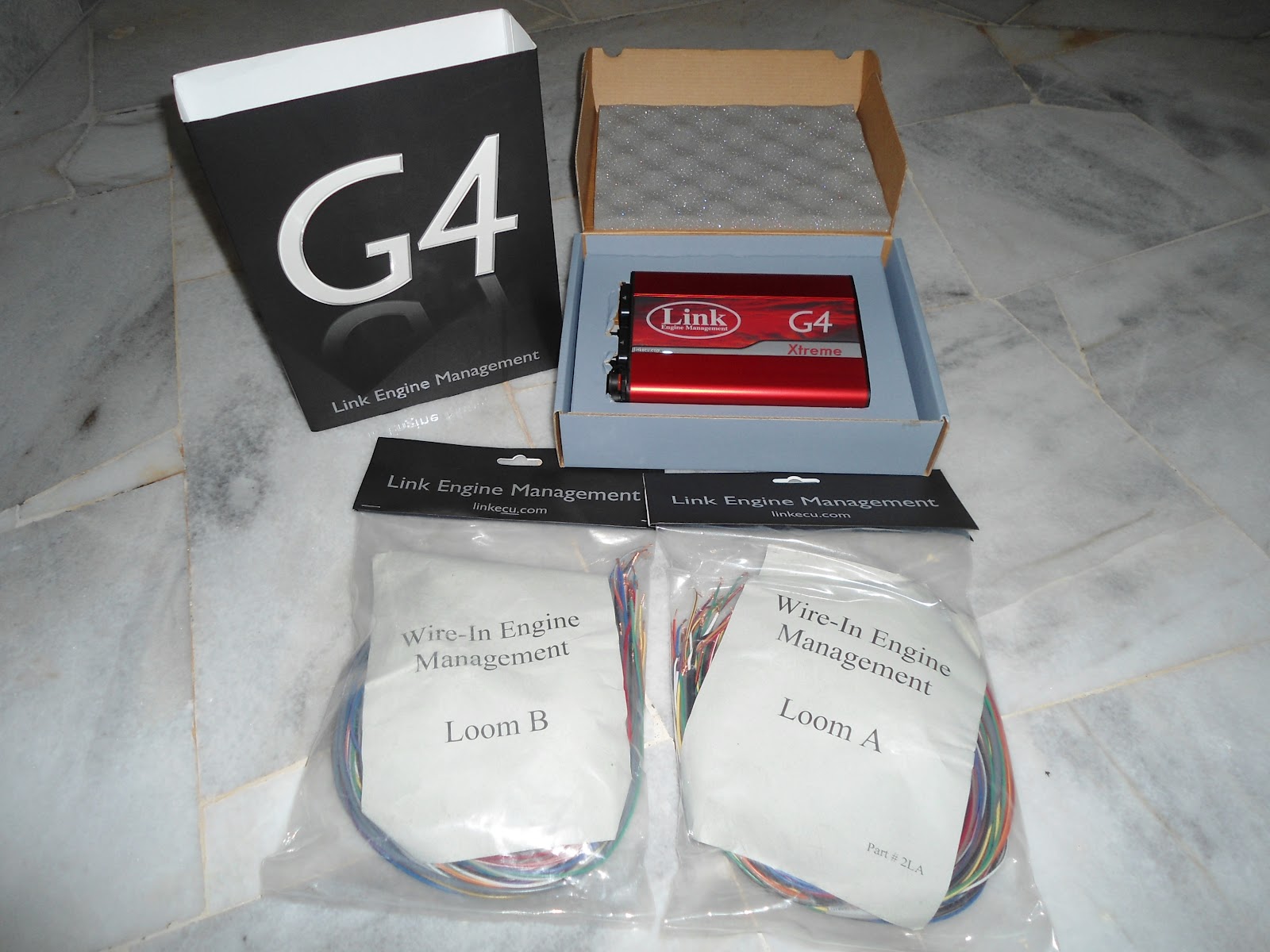

First hand experience on Link G4 Extreme ecu,this ecu features is massive.It's the top end ecu from Link.It will be installed in our customer Toyota 1JZ GTE VVT-i with HKS T51R turbo.

Watch this blog for an update on the LINK G4.

Happy motoring.


Perdana Eterna Twin Turbo (6A12TT) + E-manage Blue Tuning

 The car on the rollers

Max power achieved on stock engine,stock boost (0.6 bar) after e-manage tuning.
